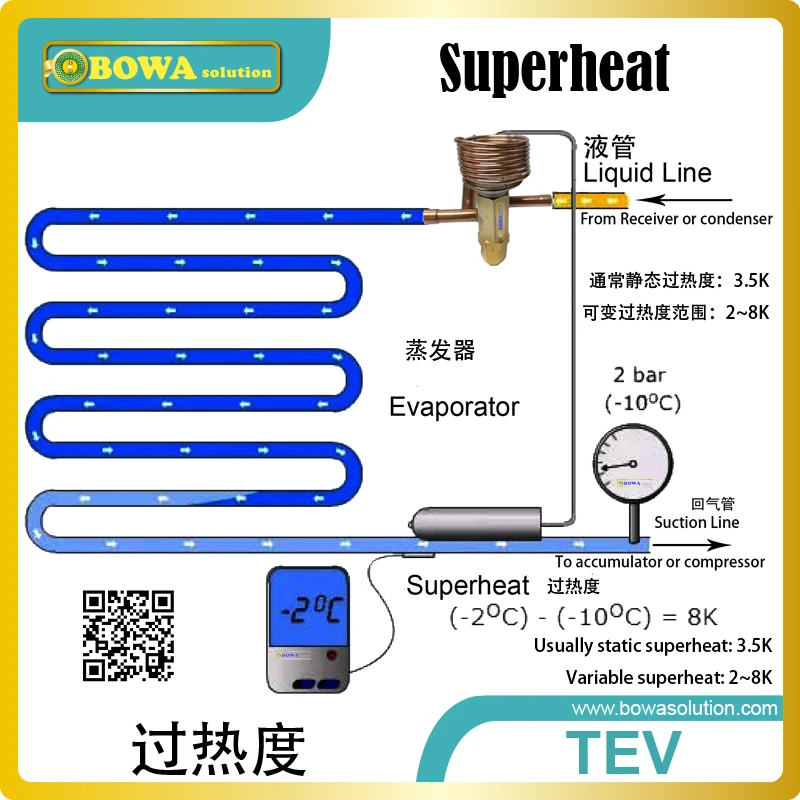

How To Check Superheat On Txv - First, measure the superheat right at the evaporator outlet in the same general location as the txv bulb and equalizer.. This means superheat, subcooling, suction saturation (evaporator coil temp), and liquid saturation (condensing temp). Find out all you need to know regarding details on appropriate superhea. Evaporator superheat the evaporator superheat is measured at the outlet of the evaporator. Most active metering devices are designed to output a set superheat (or tight range) at the outlet of the evaporator coil if the valve is provided with a full liquid line of a high enough pressure liquid (often at least 100 psig higher than the. There is typically a pressure port on the outdoor unit's small liquid line service valve.

For a txv to do what it is supposed to, you need a full line of liquid before the txv. This means superheat, subcooling, suction saturation (evaporator coil temp), and liquid saturation (condensing temp). The thermostatic expansion valve provides an additional benefit when charging the system with refrigerant. Ref tools gives you access to the tools, guidance, support, and information you need—on the job and in the field. Do not adjust charge based on superheat on systems with thermal expansion valves (txv's).

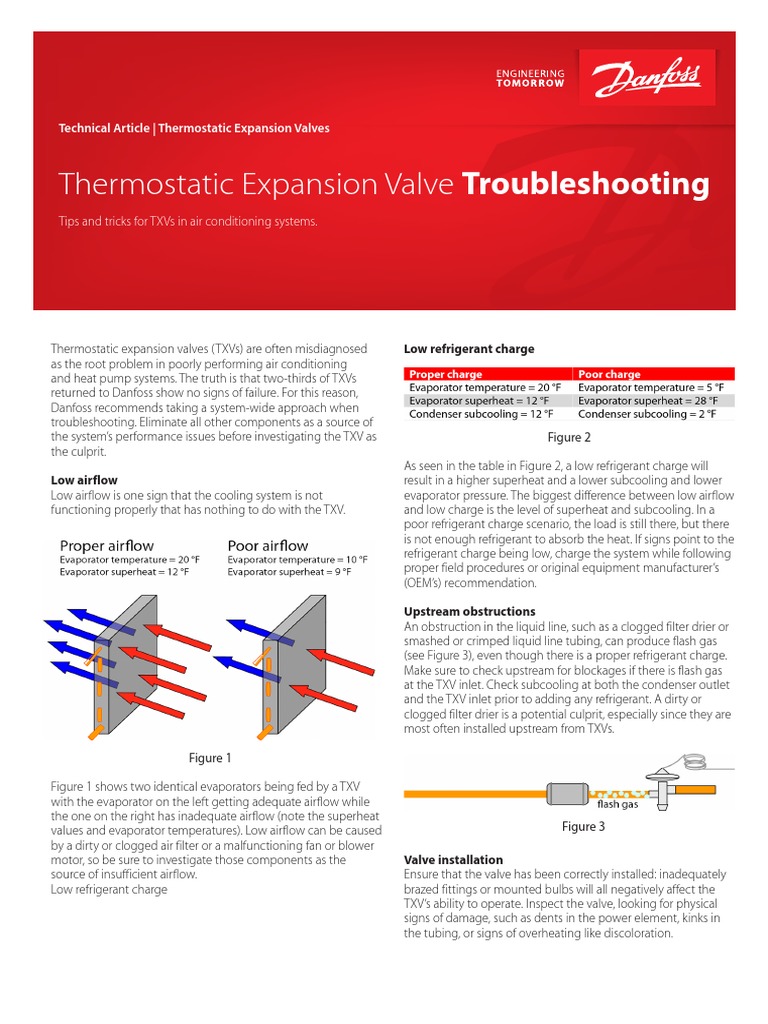

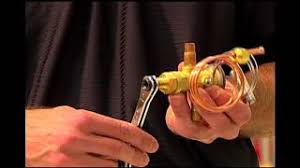

Troubleshooting Txv Valve Troubleshooting
Troubleshooting Txv Valve Troubleshooting from imgv2-1-f.scribdassets.com
Inadequate superheat can cause liquid refrigerant to return to the compressor, resulting in compressor damage. Opening superheat is the amount of superheat above static superheat that opens the valve to allow refrigerant flow. If the superheat doesn't change, and the subcooling increases, the problem is with the metering device. To check subcooling, attach a thermometer to the liquid line near the. This will ensure the compressor is not slugging with liquid even when frost is present. Txv as its flow control device. Evaporator superheat the evaporator superheat is measured at the outlet of the evaporator. If the metering device cannot be determined by reading the indoor unit rating plate, verify.

First, take all of your refrigerant readings and your liquid line and suction temperature at both ends (on a split system).

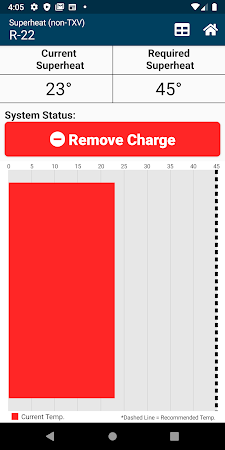

If the superheat doesn't change, and the subcooling increases, the problem is with the metering device. This is how to check the refrigerant charge on a system without a txv that has a piston/orifice or capillary metering device in front of the evaporator coil. Txv as its flow control device. There is typically a pressure port on the outdoor unit's small liquid line service valve. Check that the valve is correctly sizedforthesystem.replacewiththepropersizedvalve; By measuring indoor wet bulb and outdoor dry bulb measurements and. This will ensure the compressor is not slugging with liquid even when frost is present. If the metering device cannot be determined by reading the indoor unit rating plate, verify. Use your measurements to determine the amount of superheat. For a txv to do what it is supposed to, you need a full line of liquid before the txv. With the txv restricted, the evaporator will become inactive and run high superheat. The 100 percent saturated vapor point in the evaporator will climb up the evaporator coil causing high superheats. Mainly the superheat is located at 5 to 10 degrees.

I have only had to adjust a couple in my shrt career as a tech and i seem to have the same problem every time. Inadequate superheat can cause liquid refrigerant to return to the compressor, resulting in compressor damage. When using the subcooling method, you can check the suction superheat to help troubleshoot the txv. Then take the temperature of. Not just ice water, must be 32f).

How To Check Superheat On Txv Arxiusarquitectura
How To Check Superheat On Txv Arxiusarquitectura from i2.wp.com

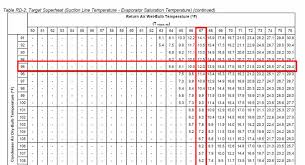

But if you face any difficulty finding it, check the appliance's spaces in its booklet. The suction line temperature at the compressor should not exceed 65 degrees to ensure proper compressor cooling. Opening superheat is the amount of superheat above static superheat that opens the valve to allow refrigerant flow. Do not adjust charge based on superheat on systems with thermal expansion valves (txv's). Check the subcooling, superheat and pressures again. Using wet bulb return air temperature If the metering device cannot be determined by reading the indoor unit rating plate, verify. I have only had to adjust a couple in my shrt career as a tech and i seem to have the same problem every time.

First, take all of your refrigerant readings and your liquid line and suction temperature at both ends (on a split system).

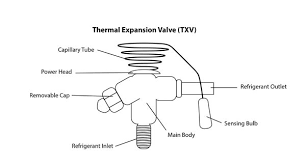

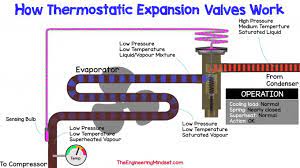

To check subcooling, attach a thermometer to the liquid line near the. This will cause the compressor superheat to be high. Well, you can easily find the superheat right inlet on the evaporator. The thermostatic expansion valve provides an additional benefit when charging the system with refrigerant. Static superheat is the superheat at which spring force is met and the valve is ready to open. Superheat the key to servicing txv systems superheat is a way to ensure that the system is boiling off all of the liquid before it exits the evaporator. If you get zero degrees superheat with a txv, then the txv is defective and will need to be replaced. Checking superheat at each evaporator on a multi ev. But if you face any difficulty finding it, check the appliance's spaces in its booklet. On txv systems with high superheat, be sure to check the subcooling as refrigerant is added. Bryant/carrier 410a systems with a txv have a subcooling of 8 to 16. Opening superheat is the amount of superheat above static superheat that opens the valve to allow refrigerant flow. With the txv restricted, the evaporator will become inactive and run high superheat.

But if you face any difficulty finding it, check the appliance's spaces in its booklet. If there's no change, that's a further indication of a txv problem. If you get zero degrees superheat with a txv, then the txv is defective and will need to be replaced. This means superheat, subcooling, suction saturation (evaporator coil temp), and liquid saturation (condensing temp). This will ensure the compressor is not slugging with liquid even when frost is present.

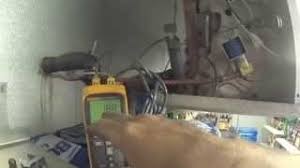

Troubleshooting With Superheat And Subcooling Txv Youtube
Troubleshooting With Superheat And Subcooling Txv Youtube from i.ytimg.com
When using the subcooling method, you can check the suction superheat to help troubleshoot the txv. Who ever installed it didnt bother to check txv superheat. Mainly the superheat is located at 5 to 10 degrees. Not just ice water, must be 32f). Superheat the key to servicing txv systems superheat is a way to ensure that the system is boiling off all of the liquid before it exits the evaporator. I recommend using an insulated cup! Static superheat is the superheat at which spring force is met and the valve is ready to open. I made sure to wait 15 minutes between adjustments.

I discuss why technicians should check total superheat along with subcooling when checking the.

To check subcooling, attach a thermometer to the liquid line near the. I recommend using an insulated cup! Most active metering devices are designed to output a set superheat (or tight range) at the outlet of the evaporator coil if the valve is provided with a full liquid line of a high enough pressure liquid (often at least 100 psig higher than the. To determine which one, view the indoor unit rating plate to see the metering device listed as installed. Do not adjust charge based on superheat on systems with thermal expansion valves (txv's). This is how to check the refrigerant charge on a system without a txv that has a piston/orifice or capillary metering device in front of the evaporator coil. Check that the valve is correctly sizedforthesystem.replacewiththepropersizedvalve; Not just ice water, must be 32f). This method of measuring superheat is most useful when setting or checking txv or eev operation because the job of the txv is to set the superheat at the evaporator outlet where the bulb or sensor is located. I discuss why technicians should check total superheat along with subcooling when checking the. Static superheat is the superheat at which spring force is met and the valve is ready to open. I made sure to wait 15 minutes between adjustments. The suction line temperature at the compressor should not exceed 65 degrees to ensure proper compressor cooling.
